Smart Dust: Architecture, Patents, and the Gap Between Vision and Deployment

Executive Summary

Smart dust began as a late-1990s research vision: ultra-small, networked sensing nodes combining sensing, computation, communication, and power into something approaching a cubic millimeter or smaller. Since then, the label has spread across several related but importantly different technology families. Classic environmental motes, millimeter-scale wireless sensor nodes, implantable neural dust, and newer battery-free ambient-IoT tags all travel under the same umbrella. That terminological drift is not a minor editorial problem. People routinely discuss these technologies as if they constitute a single coherent system when they do not. The original vision has been partially realized across multiple specialized domains rather than consolidated into one universal platform.

Patent US11354666B1 sits at the edge of this landscape rather than at its technical core. Assigned to Wells Fargo Bank, N.A., it claims a payment-authentication architecture that uses released MEMS smart dust motes to gather biometric and contextual data, generate a smart key, and authorize a transaction. Its classifications fall within payments, biometric authentication, and context-dependent wireless security. They do not fall within the core enabling hardware domains of dust-scale fabrication, radio design, packaging, or power management. In direct terms, this is a fintech and security application patent that presumes smart-dust hardware exists and functions at the required scale. It is not a foundational patent that resolves smart dust as an engineering problem.

The most defensible conclusion from the current evidence base is this: smart dust is real as a research direction and real in adjacent commercial descendants, but it is not real in the strongest popular sense of cheap, free-flying, dust-sized, general-purpose sensor swarms performing robust ambient biometrics at scale. Commercial reality today is considerably closer to industrial mesh sensor networks, millimeter-scale specialty trackers, battery-free labels, and implantable micro-sensors than to airborne authentication clouds. Even relatively favorable media coverage describes much of the field as conceptual or early-stage.

Two constraints dominate the field. The first is physics: power delivery, antenna scaling, sensing aperture, memory retention, and packaging all become increasingly punishing as dimensions move from millimeter to sub-millimeter and then toward tens of micrometers. The second is governance: a platform capable of invisibly collecting biometric, geolocation, and environmental data transforms privacy, consent, surveillance law, export controls, and electronic waste regulations from footnotes into design constraints. Those two forces explain why the field has advanced most consistently in narrow, well-bounded domains such as industrial telemetry and biomedical implants.

Definitions and Taxonomy

The term smart dust functions best as an umbrella category rather than a product specification. Primary literature and project documentation use a range of synonyms and near-synonyms: smart dust, motes, COTS dust, macro motes, MEMS sensor nodes, micromotes, millimeter-scale sensor systems, neural dust, and MOTEs. Newer commercial language introduces phrases such as ambient IoT pixels and BLE smart labels, which are conceptually related but physically much larger and functionally narrower.

The most analytically productive way to classify the field is by energy and communication modality, not by marketing language. A smart dust device can be active or passive, RF-based or optical or ultrasonic, free-flying or attached, environmental or biomedical, and single-use or continuously networked. Many disputes about feasibility resolve immediately once the modality is specified. An ultrasonic implant inside tissue is a fundamentally different engineering problem from an airborne mote authenticating a retail payment in open air.

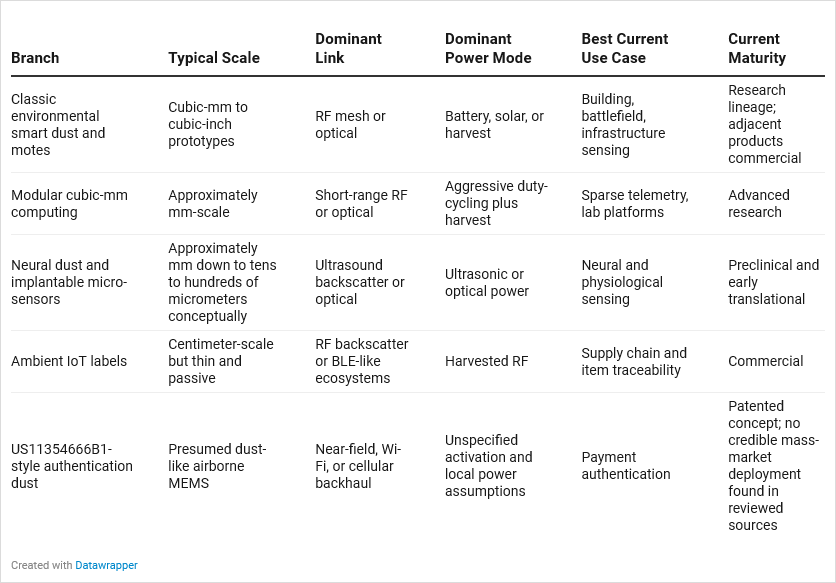

The taxonomy below groups the field into branches that are frequently conflated in policy and media discussions.

A second taxonomy, organized by functional layer, is equally important to the analysis: sensor front end, compute and controller, timing, identity and security, communication, energy harvesting and storage, packaging, provisioning, and lifecycle disposal. Progress in smart dust has historically come from a single layer temporarily outpacing the rest of the stack. A well-designed micro-sensor without packaging is not a system. A miniaturized radio without a viable power source is not a deployable node. A sophisticated authentication protocol without a functional mote platform is architecture without infrastructure.

Technical Architecture and Miniaturization Limits

A generic smart-dust system comprises six architectural blocks: a sensing element, a minimal compute and control block, a timing and reference function, a communication path, an energy source or harvester, and a package that exposes appropriate interfaces to the environment. The original University of California, Berkeley Smart Dust project framed the target as an autonomous sensing and communication system in a cubic millimeter. Subsequent millimeter-scale computing work at Berkeley explicitly described the next challenge as moving from one-off prototype nodes to modular, large-number deployments.

The sensing layer is no longer the primary bottleneck in principle. The reviewed sources collectively document optical, infrared, temperature, pressure, motion, magnetic, humidity, chemical, physiological, neural, and analyte sensing. US11354666B1 itself assumes audio, optical, temperature, pressure, motion, electromagnetic field, infrared, and location sensing. Later ultrasonic implant patents in the neural-dust branch explicitly claim analyte, pH, temperature, strain, pressure, and impedance sensing. What changes across branches is less a question of what can be sensed and more a question of how much power and bandwidth is available to sense it usefully.

Power is the defining constraint of scale. The Berkeley Smart Dust literature identified energy management as a fundamental challenge from the outset. University of Michigan millimeter-scale research demonstrated solar-powered and energy-harvesting miniature systems, while later work showed high-efficiency chip-scale photovoltaic modules using GaAs and AlGaAs for millimeter-scale energy harvesting. In tissue, the neural-dust branch shifted away from RF and toward ultrasound because electromagnetic coupling becomes extremely inefficient as implants shrink and sit inside lossy biological media. That is not a workaround. It is a recognition that the physics dictates the link technology at each scale and medium.

Communication modality is where smart dust stops being a single idea and becomes several competing approaches. The original Berkeley work explored both short-range radio and optical communication, including long-distance laser demonstrations with larger macro mote prototypes. Industrial descendants rely on synchronized RF mesh networking. Neural dust relies on ultrasonic backscatter. Other biomedical work has demonstrated microscale optical links, as in the MOTEs platform, using heterogeneous integration of CMOS and AlGaAs devices. There is no single canonical dust radio. There are multiple physics stacks competing to escape the same size-power constraint from different directions.

Fabrication methods vary correspondingly by branch. The classical dust stack relies on MEMS plus CMOS integration, micromachining, thin-film deposition, and aggressive packaging minimization. Optical versions use micro-optics or retroreflective components. Neural dust uses piezoelectric ultrasonic transducers and implant-oriented packaging. MOTEs use heterogeneous integration of 180 nm CMOS with AlGaAs diodes functioning as both photovoltaic and light-emitting devices. The millimeter-scale photovoltaic work points to III-V materials as a viable path around the weak power-budget problem, but that approach improves the physics while adding supply-chain complexity. No approach eliminates the tradeoff entirely. The choice is which cost to accept.

The miniaturization limits are now reasonably well characterized. In air and free space, shrinking antennas and batteries reduces RF range and duty cycle proportionally. In tissue, RF coupling becomes inefficient enough below the millimeter scale that ultrasound can be the dominant link. Sensor accuracy also degrades when aperture, baseline, or exposure time collapses. Optical recognition and sustained biometrics are substantially harder to execute reliably when the sensing platform is intermittent and physically tiny. Packaging, testing, addressing, provisioning, and security overhead increasingly consume silicon area and system complexity as the functional die shrinks.

The 2020 Berkeley technical report is particularly significant here because it shifts the central question from whether a single node can be built to whether millions of nodes can be built, programmed, authenticated, and managed as a coherent system. That systems-level question is one of the genuine remaining frontiers in the field.

US11354666B1 rests on several assumptions that function as conceptual placeholders rather than settled engineering facts. It contemplates airborne or near-airborne MEMS motes, optional self-propulsion, contextual sensor selection, and the assembly of biometric and mote-ID data into a transaction key. The claims are legally crafted around selection, authentication, and transaction processing rather than around a demonstrated dust-scale power, packaging, or propulsion scheme. That gap between the claim architecture and the underlying hardware assumptions is the most important technical observation about the patent.

Patent Landscape from US11354666B1

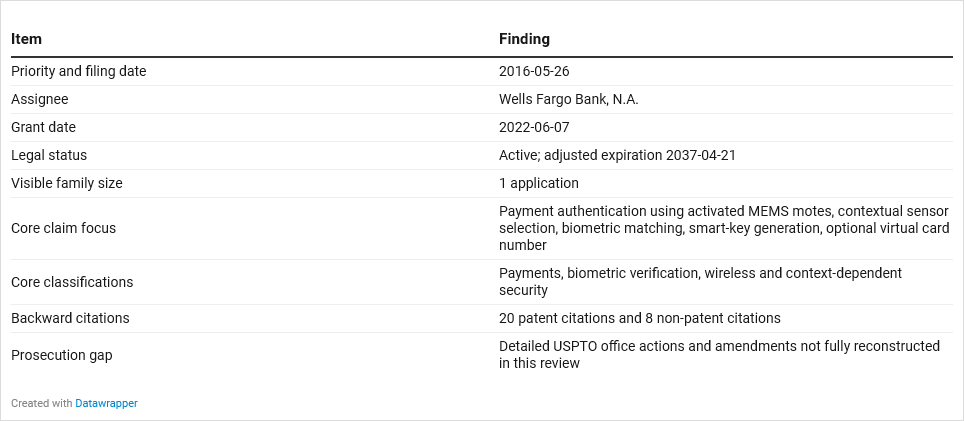

At the document level, US11354666B1 is straightforward to characterize. The publicly visible record shows filing and priority on May 26, 2016; assignment to Wells Fargo Bank, N.A. recorded on February 1, 2021; grant and publication on June 7, 2022; and an adjusted expiration date of April 21, 2037. The visible family table shows only one family application, the U.S. case itself, meaning no foreign family members surfaced in the reviewed record. CPC classifications emphasize payment architectures, transaction authorization, biometric identity checks, and context-dependent wireless security.

The backward citation pattern is analytically revealing. It draws from early MEMS sensing, mote-based wireless sensor networking, sensor-network key management, wearable authentication, and biometric capture. The examiner and applicants treated the invention as an application-layer combination of already-known building blocks: tiny sensors, local networking, biometric verification, wearable and ambient signals, and secure transaction logic. That framing confirms the earlier characterization. This is an application-integration patent built on top of an assumed hardware capability, not a hard-technology patent that advances the underlying capability itself.

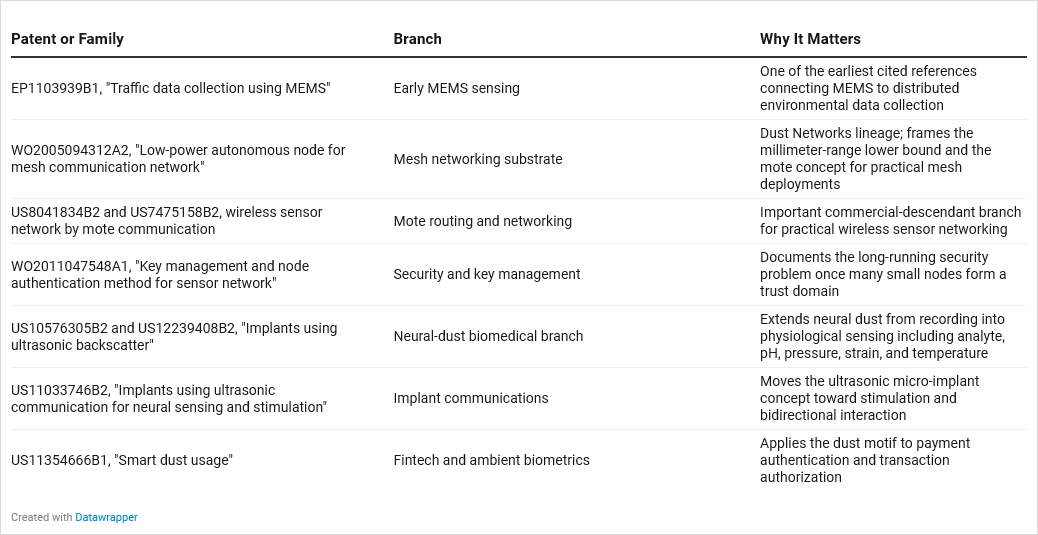

Representative related patents and patent families across the broader smart-dust landscape are summarized below. This is not exhaustive worldwide coverage, but it captures the best-supported branches that recur consistently across the academic and patent record reviewed.

The cited non-patent literature also maps how the application was framed during prosecution. The document explicitly references the classic Berkeley smart-dust networking and architecture work, a 2004 security paper on smart trust for smart dust, a 2008 paper arguing that public-key cryptography for smart dust had become affordable, and a 2007 NIOSH review of smart sensors in hazardous environments. In prosecution terms, this means the patent was constructed against a background in which smart dust was already understood as a sensor-network concept with documented security and deployment challenges, not as unexplored territory.

A fully reliable forward-citation count for US11354666B1 was not recoverable in this review. The parsed patent record exposed backward citations and family information, but a complete forward-citation list and full file-wrapper history were not retrievable. That gap is notable because forward citations are typically a stronger signal of technological influence than a patent title or abstract. What can be stated with confidence is that the patent is narrow in family scope and broad in conceptual ambition, a combination that is common in application-layer integration filings.

Prototypes, Products, and Deployment Evidence

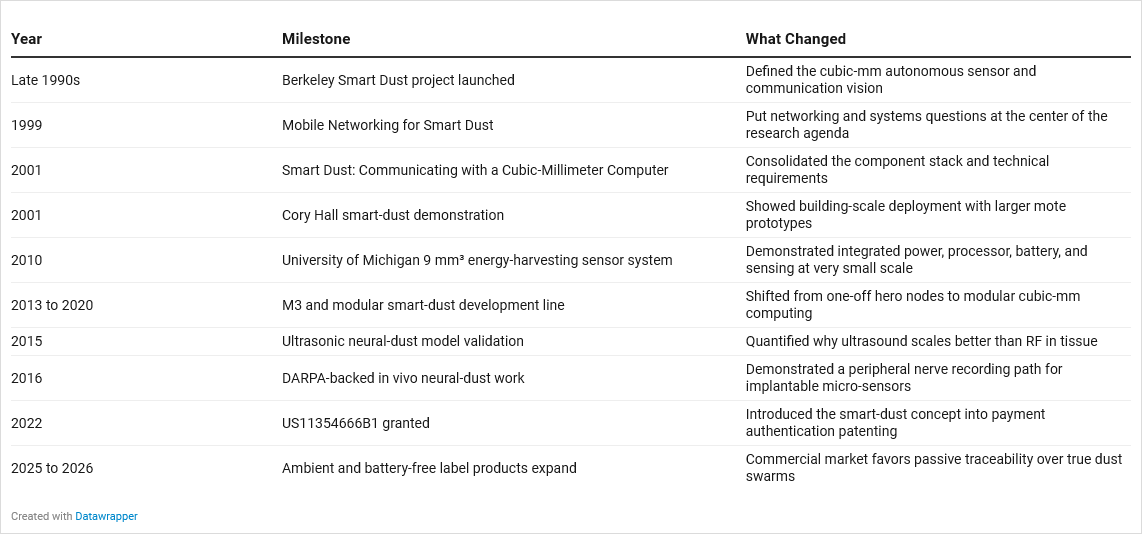

The history of smart dust is best understood as a sequence of partial realizations rather than a continuous march toward a single destination. The original Berkeley work established the architectural vision. Early macro mote prototypes proved the networking concept at larger physical size. University micro-system research then demonstrated millimeter-scale energy-harvesting sensors. Biomedical branches showed that ultrasound and optical power and data links can outperform RF at micro-implant scales. Commercial descendants, meanwhile, found their first footing in industrial sensor networks and passive item-level sensing rather than in true dust clouds.

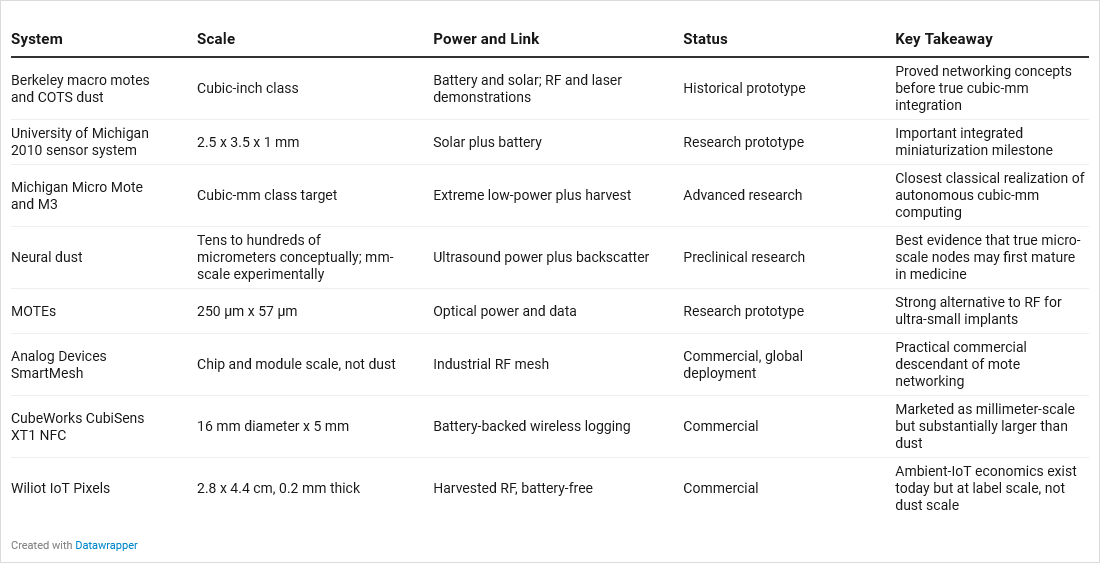

The product and prototype landscape below compares representative implementations across the field.

Four deployment cases carry the most evidentiary weight. First, the Berkeley 2001 Cory Hall demonstration showed that smart-dust-inspired wireless sensing can work at building scale using larger motes. Second, the NIOSH mining review documented a substantive government use case for smart sensor networks in hazardous work environments, emphasizing physiological, environmental, and location telemetry. Third, DARPA-backed neural-dust work produced rodent in vivo results, advancing the field from concept toward a medically relevant interrogation model. Fourth, SmartMesh products from Analog Devices are now deployed in thousands of networks across 120 countries, demonstrating that one major branch of the original mote concept is commercially mature when the size target is relaxed.

That last point carries strategic significance. The honest answer to whether smart dust has been commercialized is yes, but predominantly in softened form. The networking stack, low-power scheduling, duty-cycled sensing, and large-node-population management problems are being addressed in industry. The genuinely hard remaining problem is atomizing those capabilities into dust-scale, free-deployable nodes without violating physics, undermining reliability, running into regulatory barriers, or collapsing unit economics.

Governance, Ethics, Supply Chain, and Economics

Where smart dust captures biometric data, the applicable legal framework becomes demanding immediately. In the European Union, biometric data used to uniquely identify a person constitutes special-category personal data under Article 9 of the GDPR. The 2024 EU AI Act separately defines biometric identification, biometric verification, and remote biometric identification systems with distinct regulatory treatment for each. In Illinois, the Biometric Information Privacy Act defines biometric identifiers to include scans of hand or face geometry, retina or iris scans, fingerprints, and voiceprints, and imposes notice and consent obligations before collection. In California, the CCPA and CPRA treat biometric information processed to identify a consumer as sensitive personal information subject to heightened protections. For any deployment resembling the scenario described in US11354666B1, these frameworks are not peripheral considerations. They are central design constraints that affect system architecture before the first node is deployed.

Radio frequency regulation is similarly non-negotiable. In the United States, the FCC Part 15 framework permits low-power unlicensed devices, but only on a non-interference basis and subject to strict technical limits. For interoperable industrial deployments, relevant standards bodies include IEEE for 802.15.4 low-rate wireless connectivity and IEC for IEC 62591 WirelessHART; ISA100.11a plays a parallel role in industrial automation. None of these standards were written for free-flying biometric dust swarms, but they form the practical standards substrate for low-power, low-rate sensing networks today.

Export control is fact-specific but potentially material. The Bureau of Industry and Security makes clear that encryption-capable hardware, software, and technology can fall under Category 5, Part 2 of the Export Administration Regulations, including ECCN 5A002 and 5D002 classifications, often with License Exception ENC as the primary route for lawful export. BIS guidance also notes that items specially designed for military applications can instead fall under ITAR jurisdiction administered by the State Department. A smart-dust platform combining strong cryptography, multiple sensors, autonomous networking, and potential defense-related deployment can face materially different export treatment depending on hardware performance specifications, software functionality, and documented end use. There is no single ECCN classification that applies across the field.

Environmental regulation has become a concrete concern rather than a speculative one. The EU RoHS Directive restricts hazardous substances in electrical and electronic equipment. The WEEE Directive requires separate collection and selective treatment of electronic waste. The Basel Convention’s e-waste amendments that took effect on January 1, 2025 broaden controls over transboundary movement of e-waste. If dust-like sensor systems ever reach deployment volumes measured in billions of units, their end-of-life classification, recovery infrastructure, and international movement will require deliberate regulatory planning. Miniaturized nodes do not become exempt from waste regulation by virtue of their size. They become problematic waste at scale precisely because of it.

Supply-chain risk is more nuanced than the common rare-earths shorthand suggests. Some smart-dust branches depend primarily on silicon CMOS, MEMS wafers, and packaging capacity. Others add piezoelectrics, III-V semiconductors such as GaAs and AlGaAs, or specialty materials for photovoltaics and transducers. The U.S. Geological Survey reports that the United States remained reliant on imports from China as a major source for 14 of the 33 critical minerals for which U.S. import dependence is greatest. The Department of Energy 2023 Critical Materials Assessment maintains materials such as gallium and several rare earths in the critical-supply conversation. In practical terms, the bottleneck for future smart dust may be less a question of design feasibility than one of material sourcing, fabrication yield, and packaging scalability.

Economics is where the field’s aspirations encounter the clearest friction with current reality. One useful public benchmark comes from Wiliot, which advertises battery-free IoT Pixels at approximately 10 to 12 cents per unit at high volume. Those are centimeter-scale passive labels, not autonomous dust motes. SmartMesh is sold as infrastructure components and solution platforms rather than as commodity particles. CubeWorks sells specialty trackers for cold-chain and logistics applications at sizes substantially above dust scale. The inference is direct: if centimeter-scale passive ambient IoT is only now reaching dime-level unit economics, autonomous dust-scale nodes with integrated sensing, compute, identity management, and communications remain far from the disposable-RFID pricing tier. Publicly available unit-cost transparency for such nodes is also sparse, which is itself an indicator of commercial immaturity.

The ethical and societal dimensions of the technology are not speculative additions to the technical analysis. They are design drivers. Invisible or near-invisible sensing displaces consent from a user-interface problem to an ambient-governance problem requiring institutional solutions. Authentication architectures can become surveillance architectures with minimal engineering modification. Biomedical versions introduce ongoing safety, retrieval, and bodily autonomy obligations that persist for the life of the implant. Environmental versions raise traceability, contamination, and waste-stream accountability questions that scale with deployment volume. And every branch raises questions about asymmetric sensing power when millions of inexpensive nodes sit in the hands of a small number of institutional actors. The technology’s most constructive applications and its most problematic abuse cases are separated by a narrow margin of design and policy choice.

Maturity Outlook and Future Directions

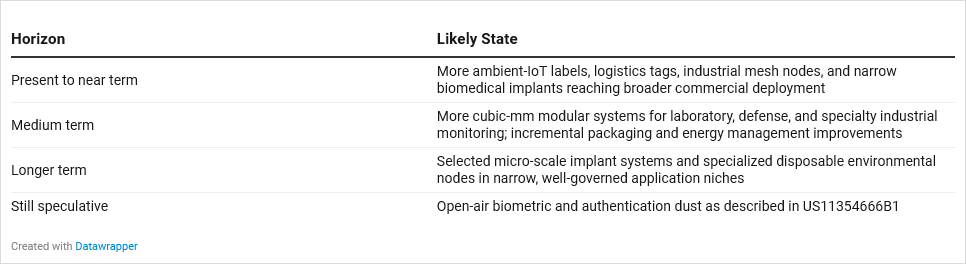

The field is commercially mature today only in substantially diluted form. Low-power wireless sensor networks are mature. Battery-free labels and thin passive tags are now commercial products with established supply chains. Millimeter-scale specialty sensors are appearing in real products in logistics, industrial monitoring, and cold-chain applications. Ultrasonically powered micro-implants have demonstrated strong preclinical momentum. The canonical smart-dust scenario, however, which involves free-flying, dust-sized, general-purpose, self-powered, secure, low-cost, and massively deployed sensor swarms, is not commercially mature. The most defensible estimate from the current evidence base is that the field will continue to commercialize by specialization into well-defined niches rather than by converging into a single universal mote platform.

The most productive technical research directions are those that address the stack holistically rather than optimizing a single layer. The Berkeley modular smart-dust work argues for reusable system building blocks rather than single heroic chips designed for one application. Berkeley Sensor and Actuator Center work on zero quiescent power RF receivers points toward receivers that consume effectively no standby power, which addresses one of the most persistent constraints on duty-cycled sensing. Neural-dust and related implant research suggests that ultrasound and optical methods will continue to outperform RF in micro-implant applications. Commercial ambient-IoT development demonstrates that manufacturability, provisioning infrastructure, and supply-chain economics matter at least as much as individual chip performance. The systems and platforms that are most likely to define the next decade of the field are probably those that are slightly less technically ambitious and considerably more deployable at scale.

Open Questions and Remaining Limitations

Several substantive gaps remain in the current analysis. The full USPTO office-action history for US11354666B1 was not reconstructable in this review, so the prosecution analysis should be treated as a document-level summary rather than a complete file-wrapper examination. A fully reliable forward-citation list for the patent was also not recoverable. Public pricing for most smart-dust-adjacent commercial products remains sparse and inconsistently disclosed, which bounds cost conclusions to inference rather than verified benchmarks.

More broadly, the strongest future claims in the field, particularly those involving free deployment in open air, safe and reliable recoverability, secure identity management at dust scale, and viable mass disposal, remain lightly evidenced relative to the better-supported industrial and biomedical branches. Those gaps are precisely what separate a technically sophisticated and commercially interesting research field from a broadly deployable platform with verified real-world performance. Closing those gaps requires not only continued engineering progress but also deliberate regulatory engagement, sustained investment in systems-level research, and honest accounting of what remains unproven.
